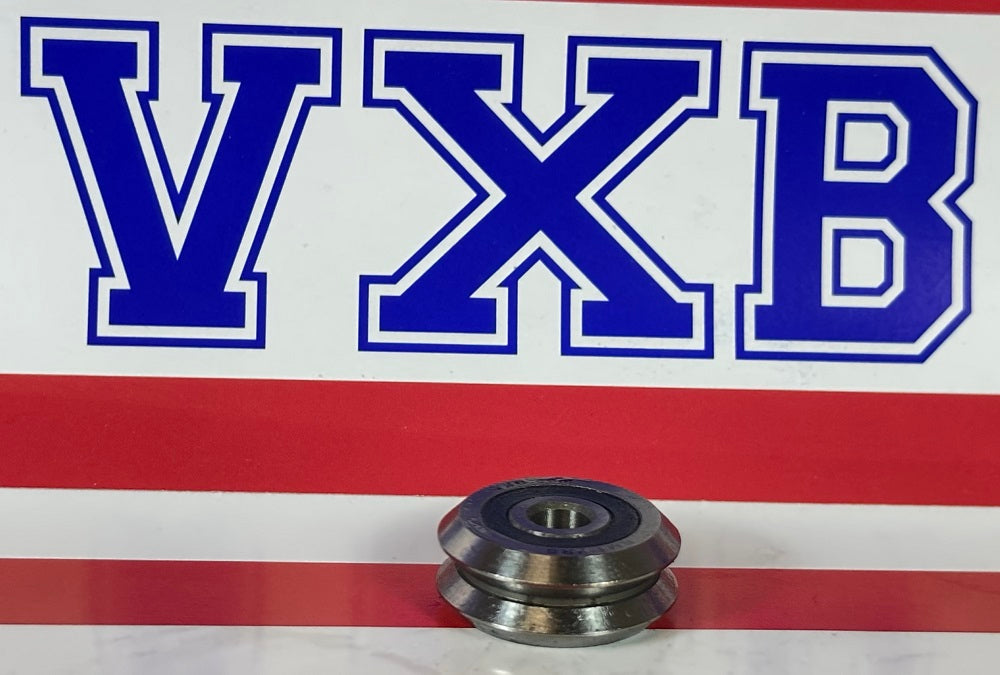

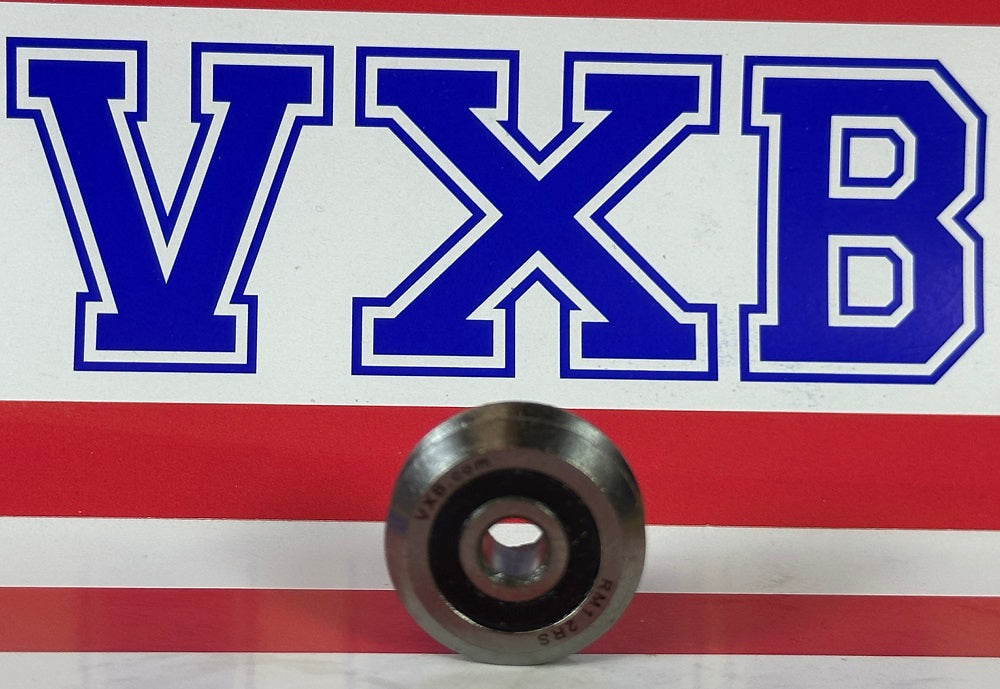

RM1-2RS 3/16" inch V-Groove Guide Ball Bearing Sealed (W1-2RS)

RM1-2RS V-Groove Guide Bearing – Sealed
✔️ 3/16" Bore – For Tracks, Rails, and Linear Motion

The RM1-2RS is a V-groove guide bearing designed for smooth guided movement along angled tracks or rails. With double seals and chrome steel construction, this 3/16" bore bearing is perfect for linear motion systems, sliding doors, or CNC builds.

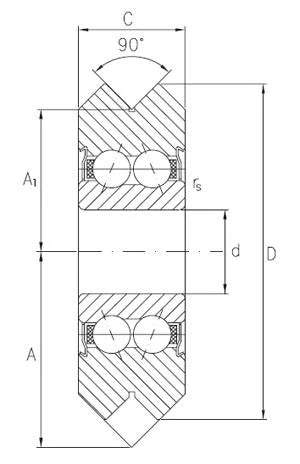

✅ Bore Size: 3/16" (4.763mm)
✅ Outer Diameter: 19.56mm
✅ Width (A): 11.86mm
✅ V-Groove Width (C): 7.87mm
✅ Flange Thickness (A1): 7.93mm
✅ Seal Type: Double rubber seals (2RS)
✅ Load Rating (Dynamic): 1,650 N
✅ Load Rating (Static): 1,140 N
✅ Max Speed (Grease): 4,150 RPM
✅ Radius (rs): 0.3mm
✅ Quantity: 1 bearing
✅ Equivalent: W1-2RS

💡 What is a V-groove bearing used for in motion systems?
V-groove bearings are made to roll along tracks or angles, guiding linear or curved motion. They're often used in automated machines, gates, or gantry systems where precision and alignment are key.

Ready to glide where you guide - grab your RM1-2RS bearing today and make your motion smoother than ever!
